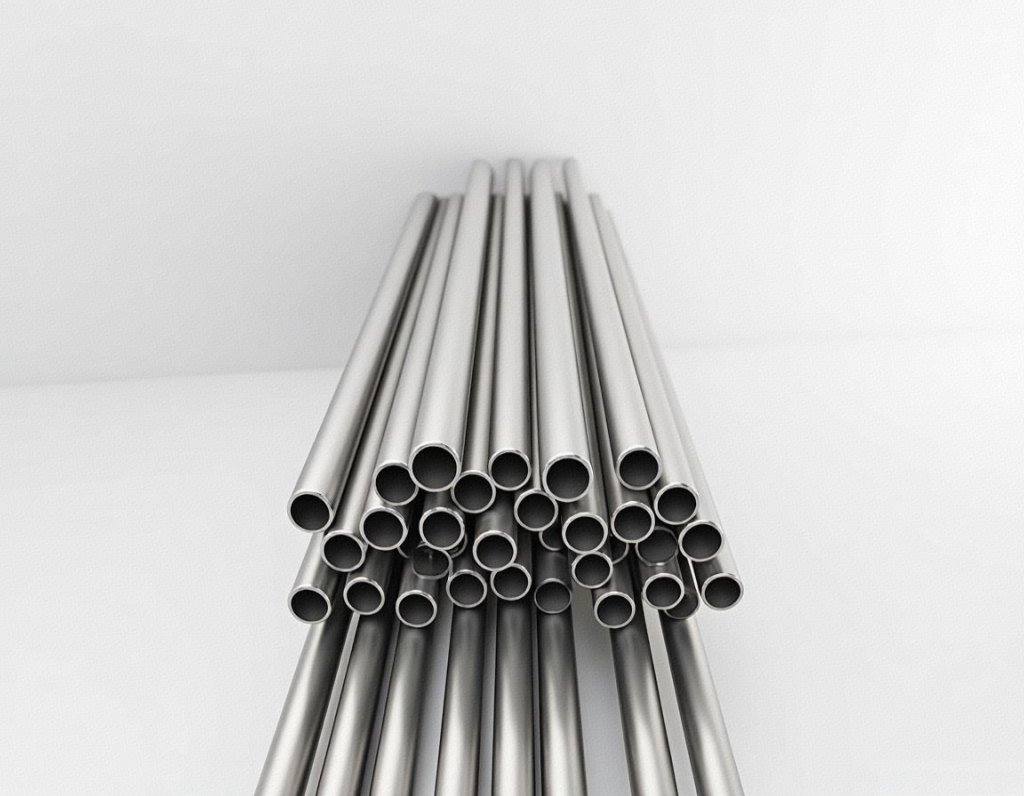

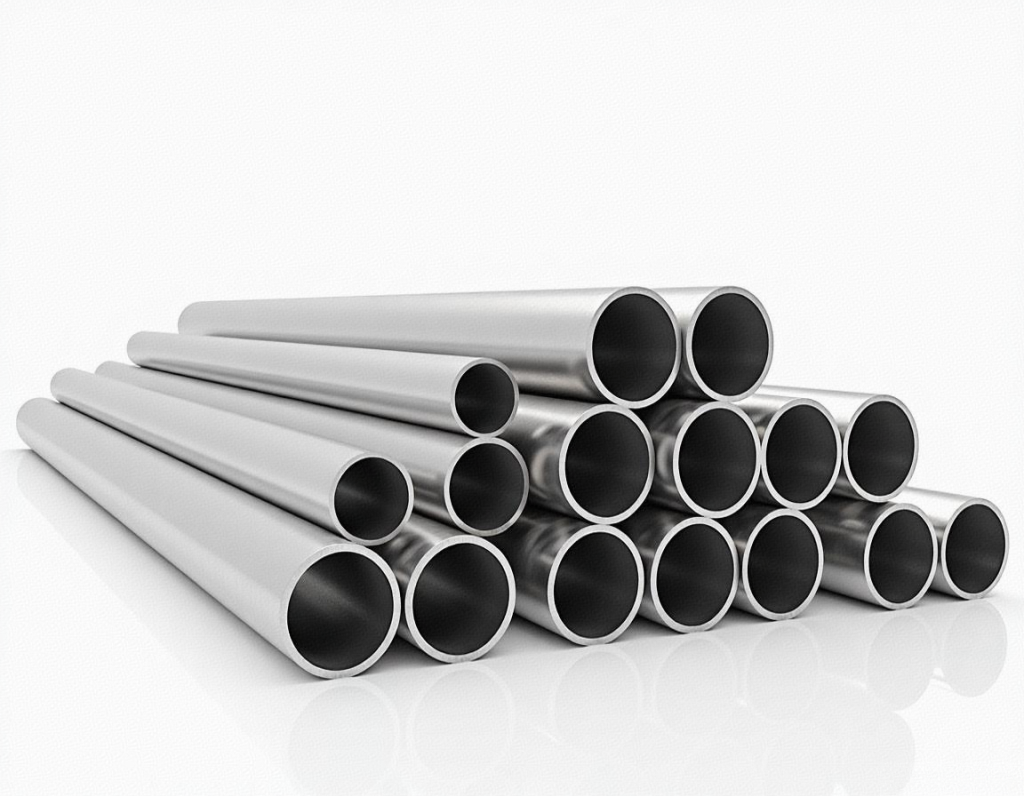

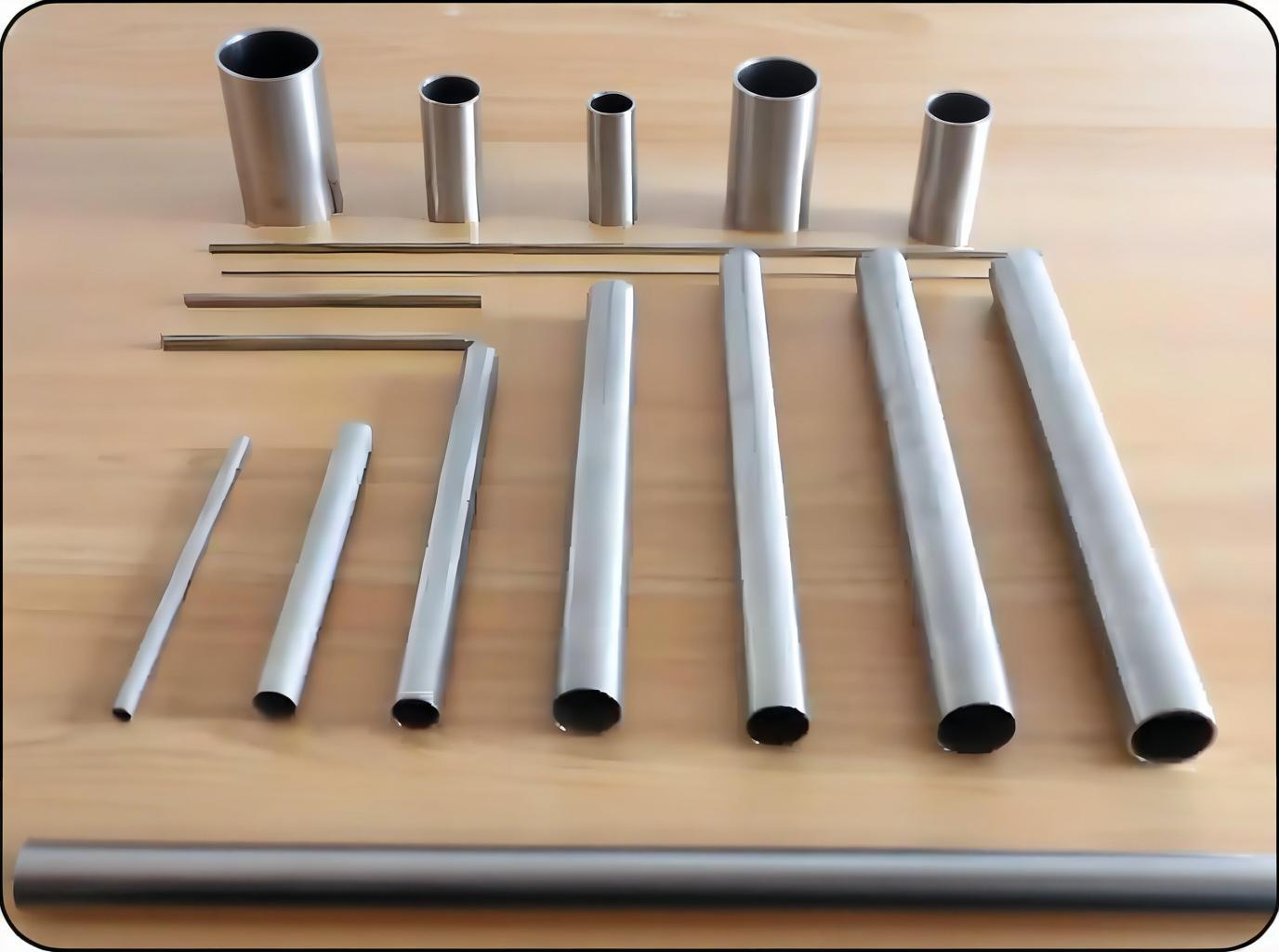

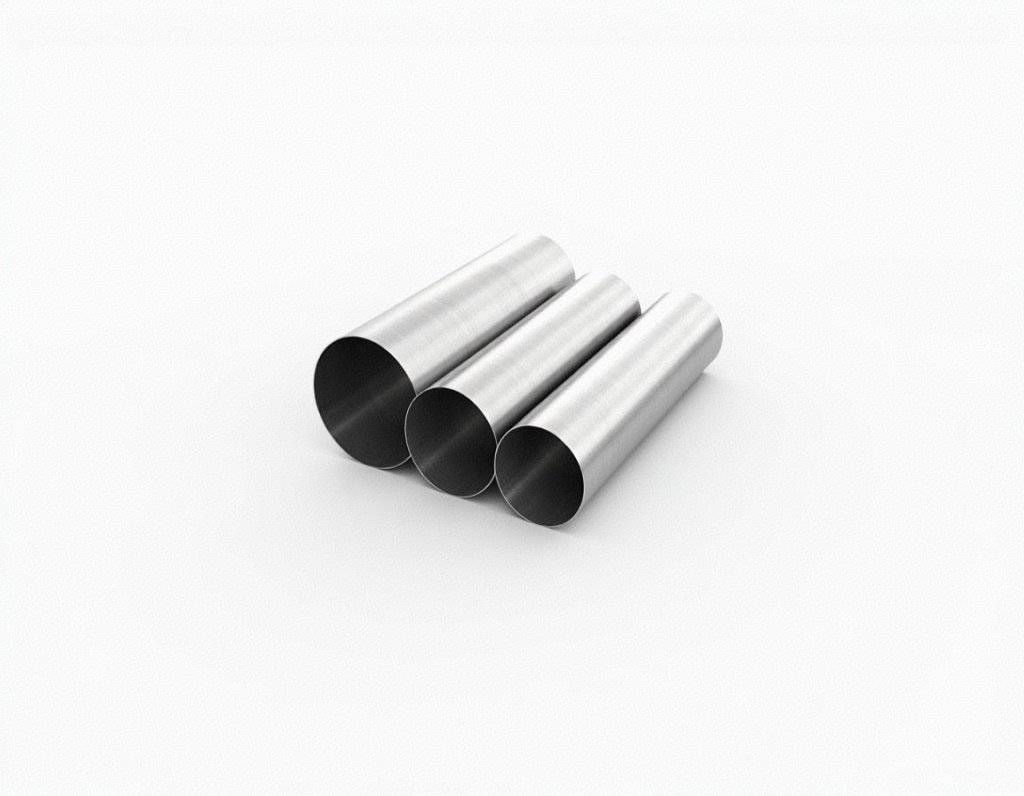

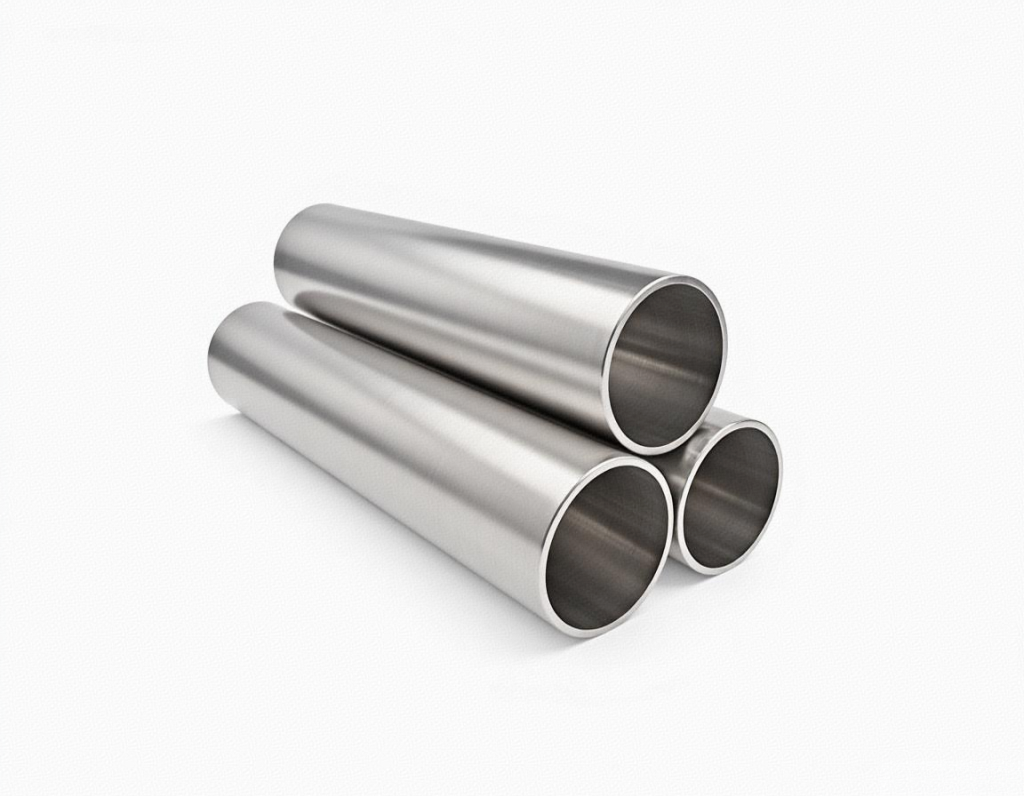

Precision-Engineered Pressure Systems Designed for industrial fluid transport, our schedule 40 stainless steel pipe dimensionscomply with ASME B36.19 standards - 325mm variants feature 9.53mm wall thickness. The schedule 40 stainless steel pipe sizesrange from 1/8" to 24" with ±0.1% OD tolerance. For hygienic applications, schedule 40s stainless steel pipe dimensionsmaintain 0.065" minimum wall thickness in 304/316L alloys.
Specification
Schedule 40 Data
Nominal Pipe Size (NPS)
1/8" to 24"
Wall Thickness
1.73mm (1/8") - 12.7mm (24")
Pressure Rating
150# - 2500# ANSI Class
Material Grades
304/316L/2205/310S
Surface Finish
2B + 120 Mesh Polish
Industrial Applications & Standards The schedule 40 stainless steel pipe sizesaccommodate working pressures up to 2,200 PSI (304L) in chemical processing plants. Our schedule 40s stainless steel pipe dimensionswith electropolished interiors meet 3-A sanitary standards for dairy and pharma industries. CNC-cut bevel ends (37.5°±1°) ensure perfect weld alignment.
Certified Manufacturing & Logistics All schedule 40 stainless steel pipe dimensionsshipments include EN 10204 3.1 certificates and hydrostatic test reports. 60x40x40cm wooden crates with VCI protection guarantee corrosion-free transit. MOQ 1 ton with 30% deposit enables rapid production of custom-length ASME B36.19 compliant systems.
