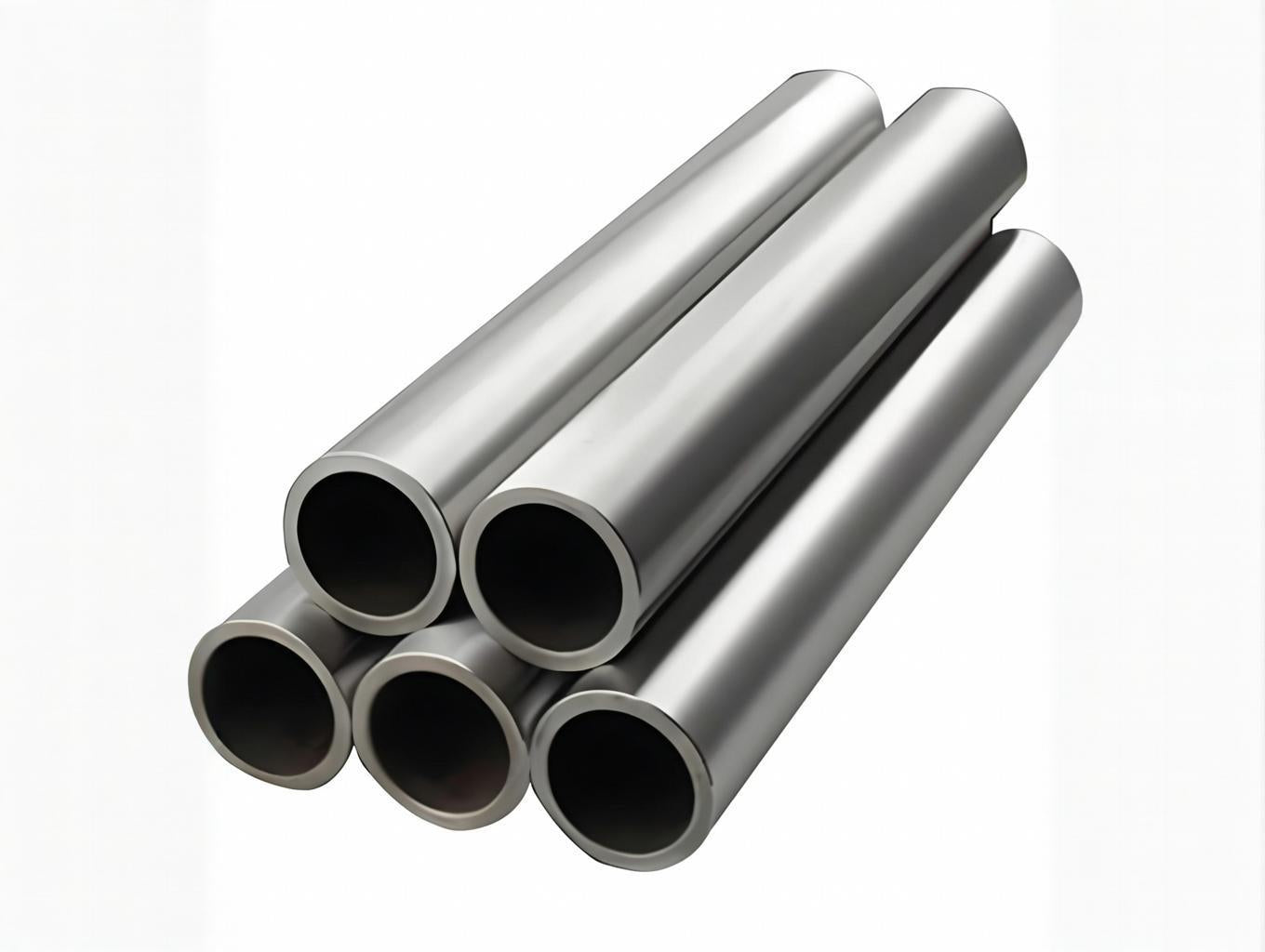

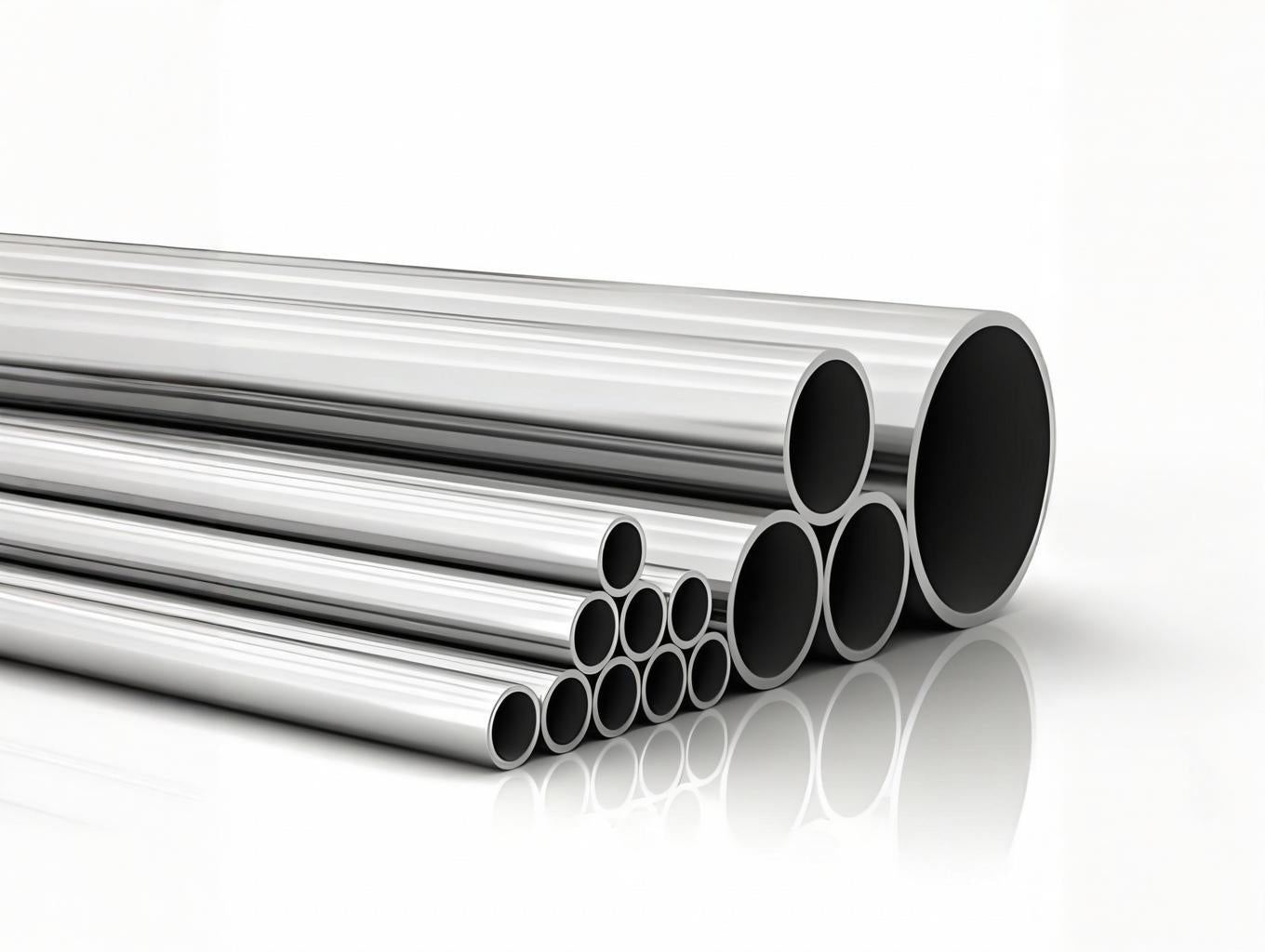

Pipe Schedule Chart Stainless Steel
ASME B36.19 compliant specifications for industrial system design and pressure calculations.

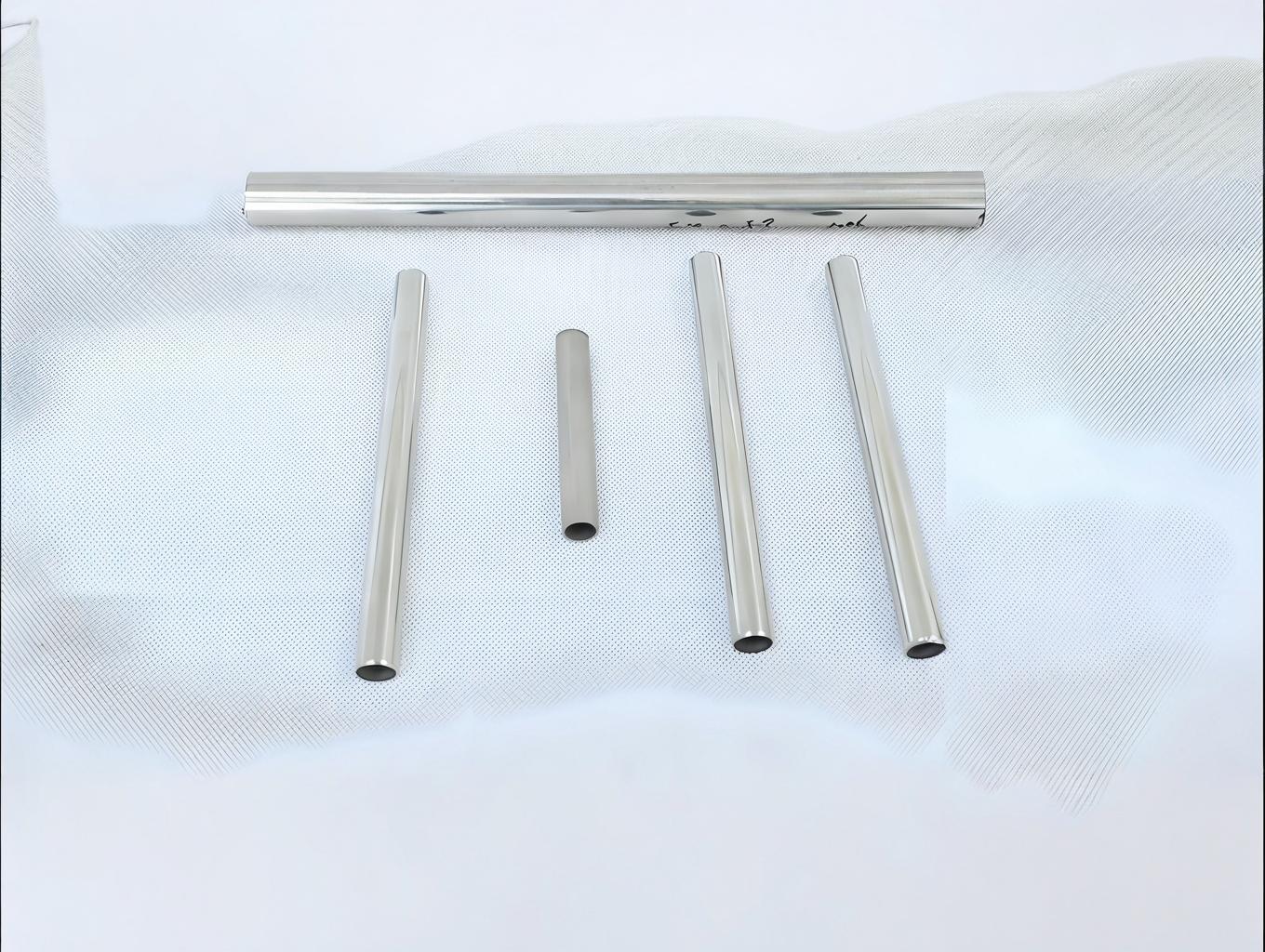

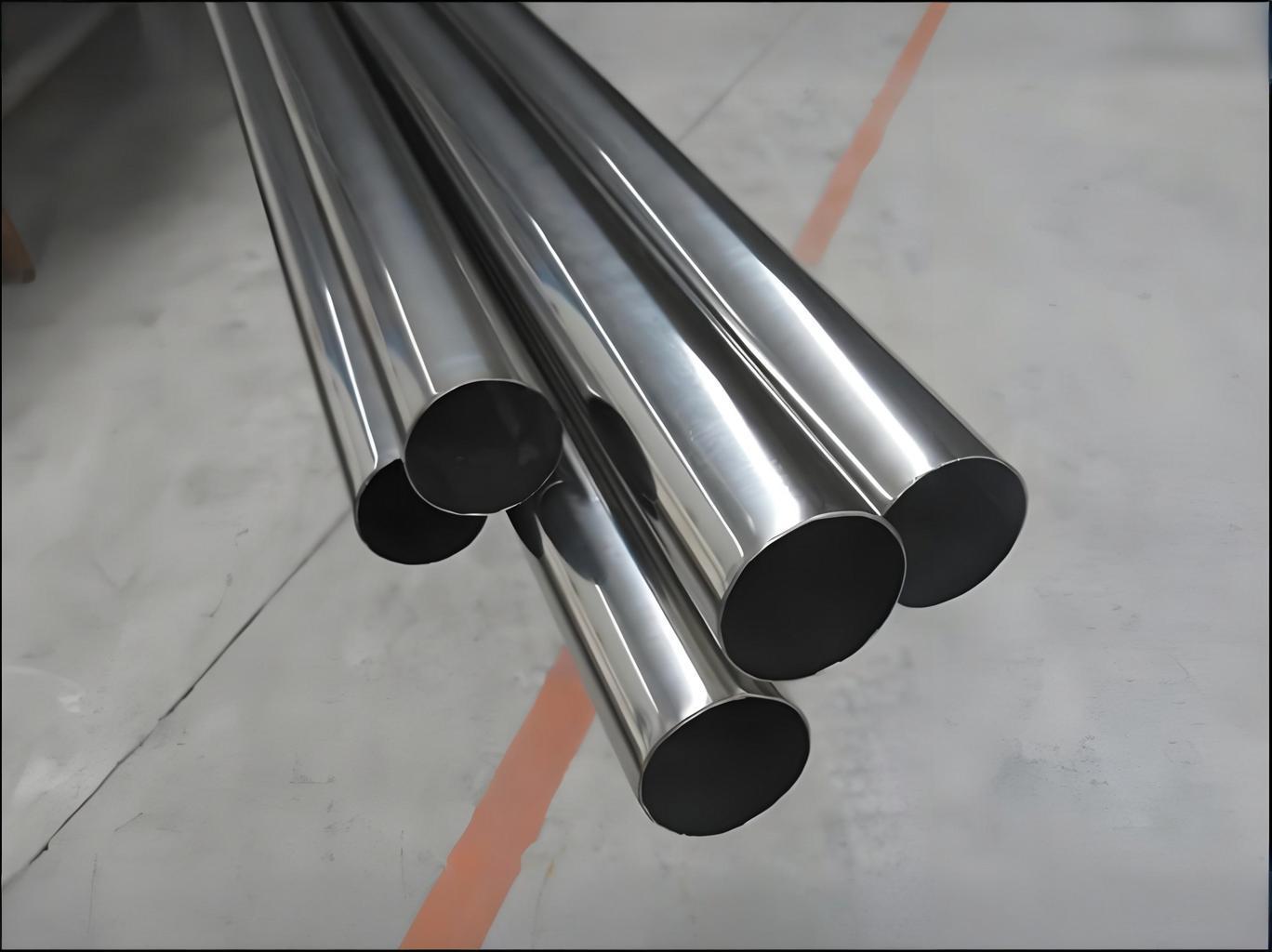

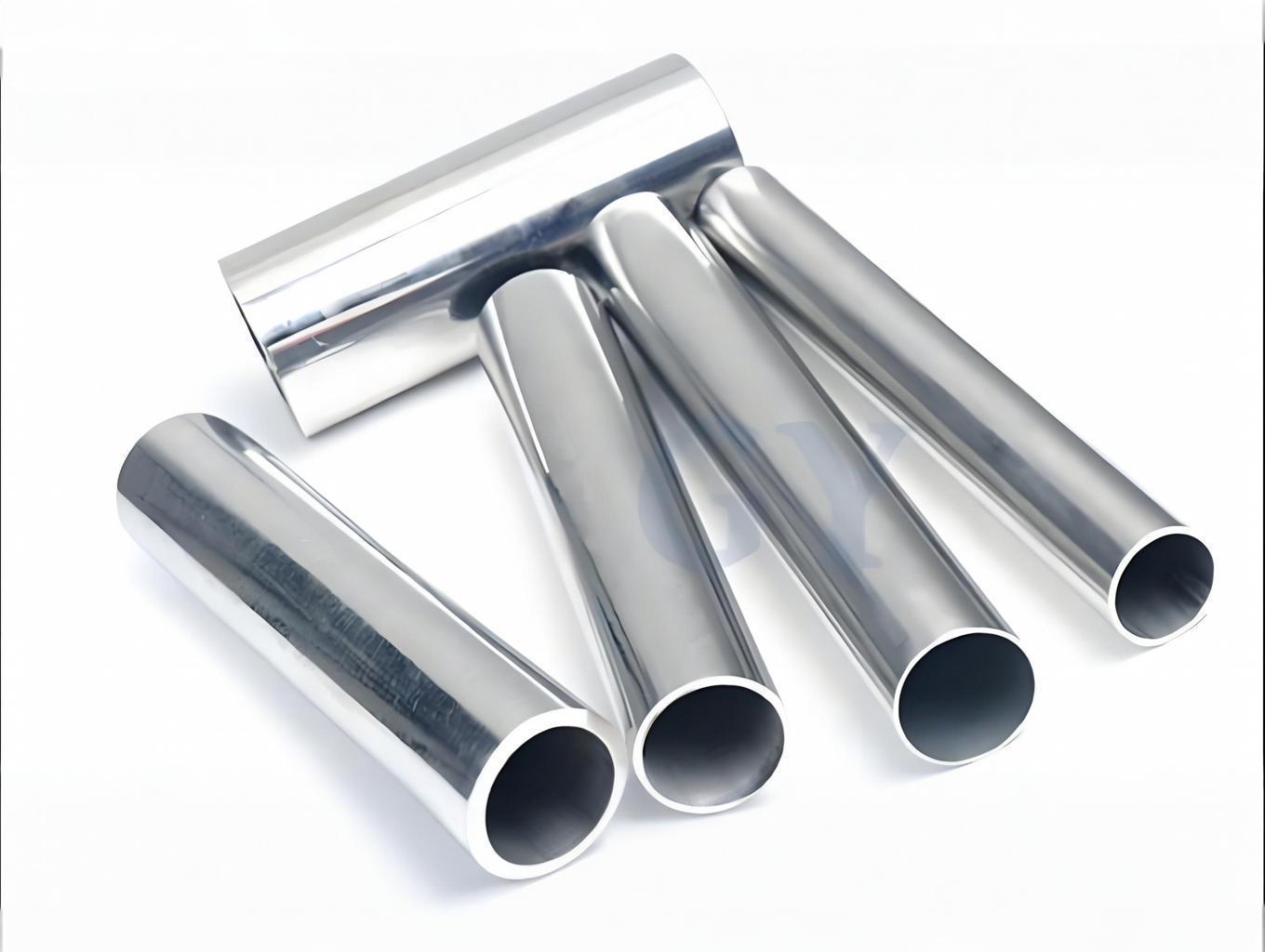

Polished Stainless Steel Pipe
Mirror-grade finishes (Ra ≤0.8μm) for architectural and sanitary applications.

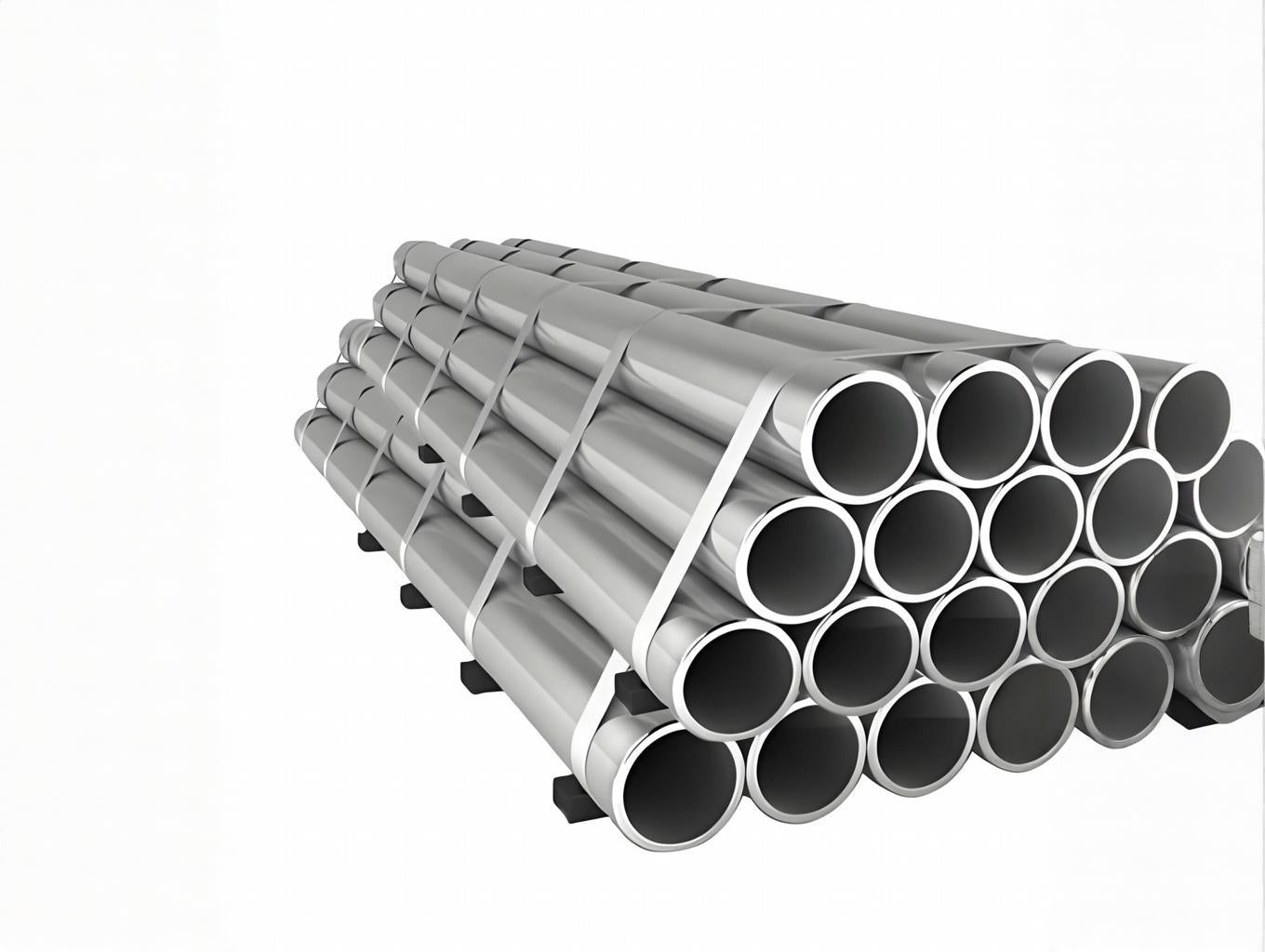

SCH 80 Stainless Steel Pipe
Heavy-wall piping solution for high-pressure systems (up to 500 PSI).
| Specification |
Schedule Chart
|
Polished Pipe
|
SCH80 Pipe
|
| Material Grades
|
304/316L/2205 |
316L/304 Mirror Finish |
316/2205 Duplex |
| Diameter Range
|
15mm-300mm |
6mm-150mm |
20mm-400mm |
| Wall Thickness
|
SCH5S-SCH160 |
1.2mm-6.0mm |
3.68mm-12.7mm |
| Surface Roughness
|
120 Grit (Ra 3.2μm) |
Electropolished (Ra 0.4μm) |
2B Mill Finish |
| Pressure Rating
|
Varies by SCH Number |
150 PSI (SCH10S) |
500 PSI @ 100°C |
Key Technical Features
- Full ASTM A312/A358 compliance
- 7-day global delivery with humidity-controlled packaging
- Custom processing: orbital welding & CNC threading
- MOQ 1 ton with volume discounts
- 30% TT advance payment terms
