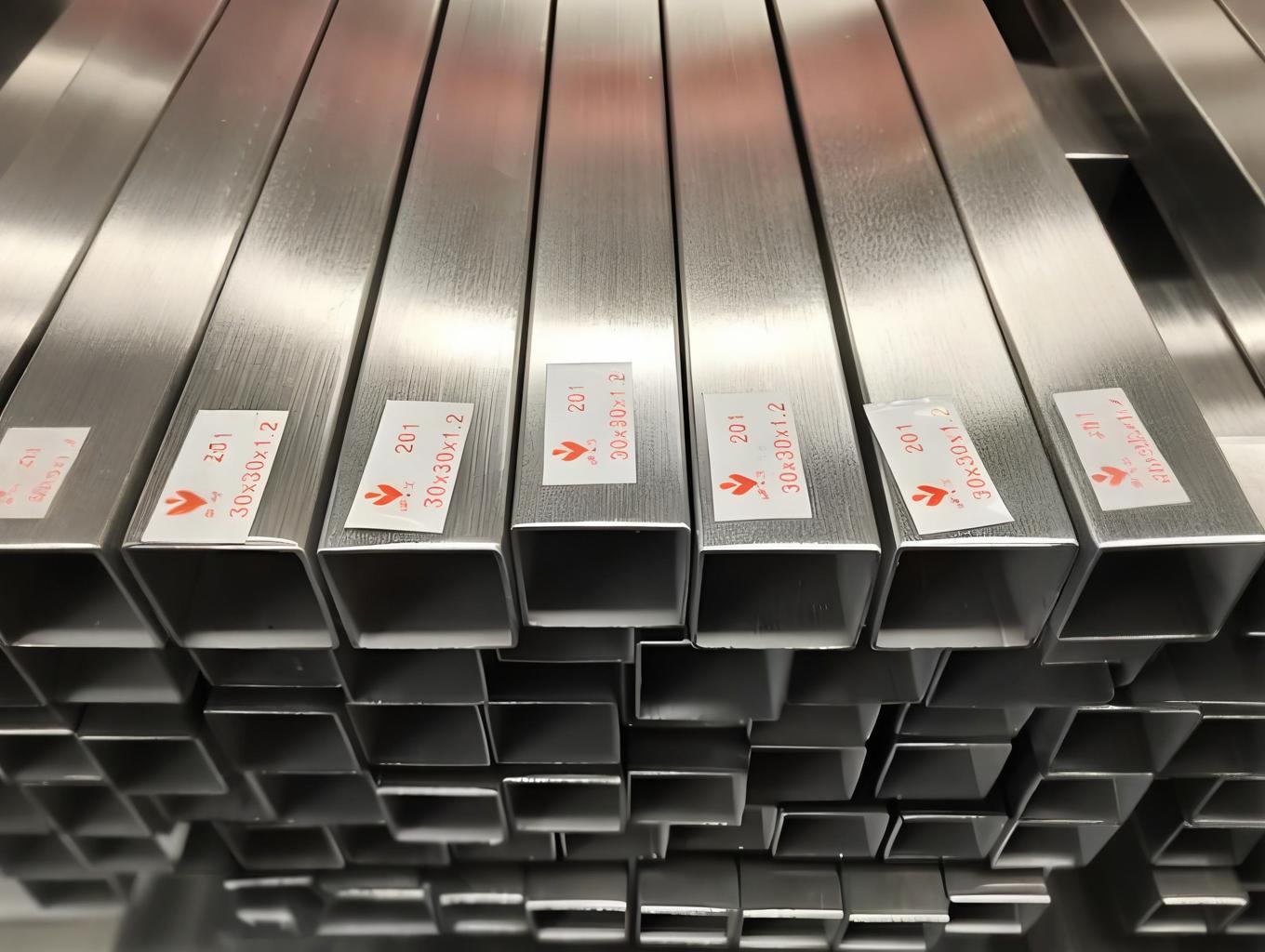

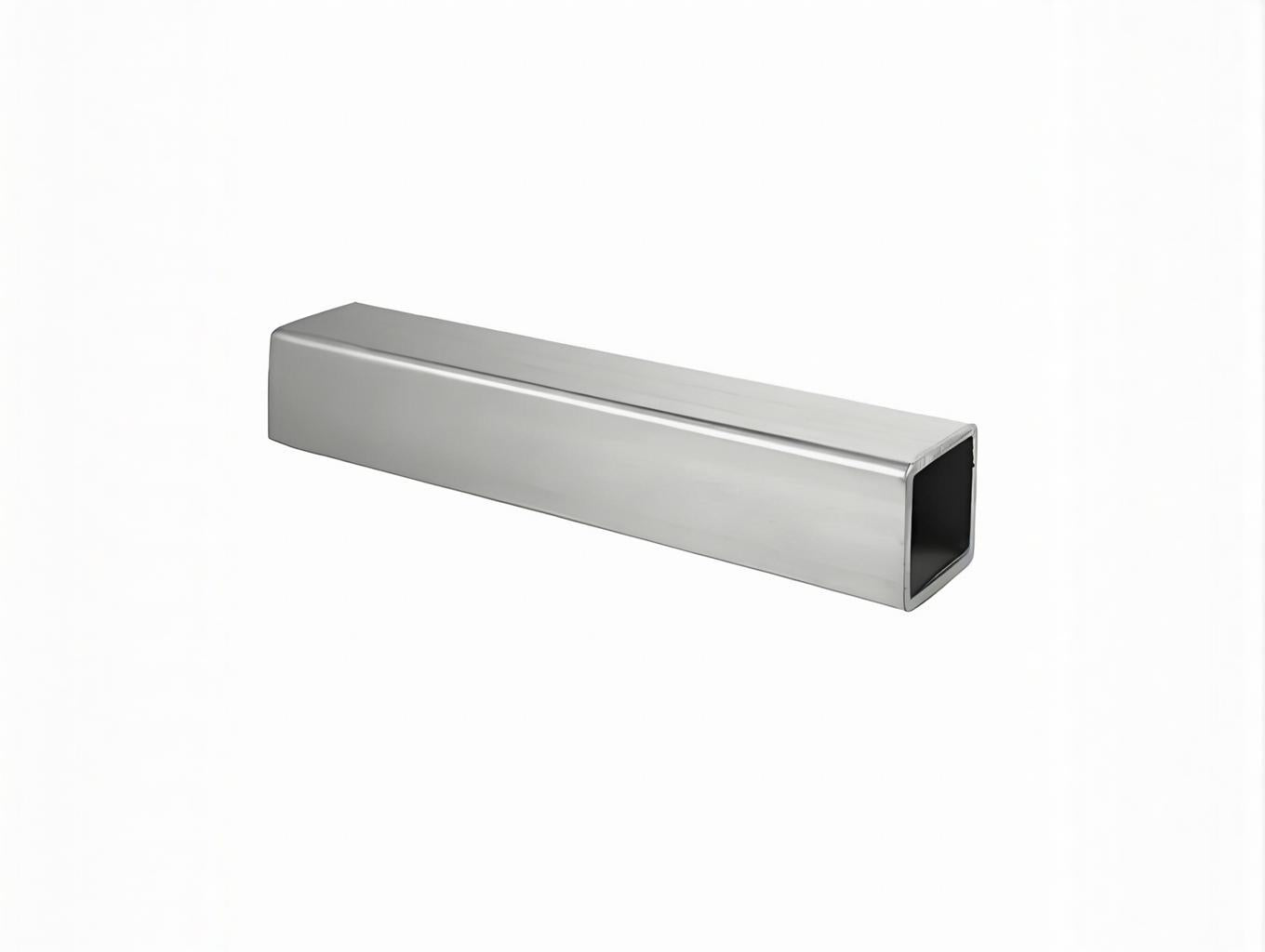

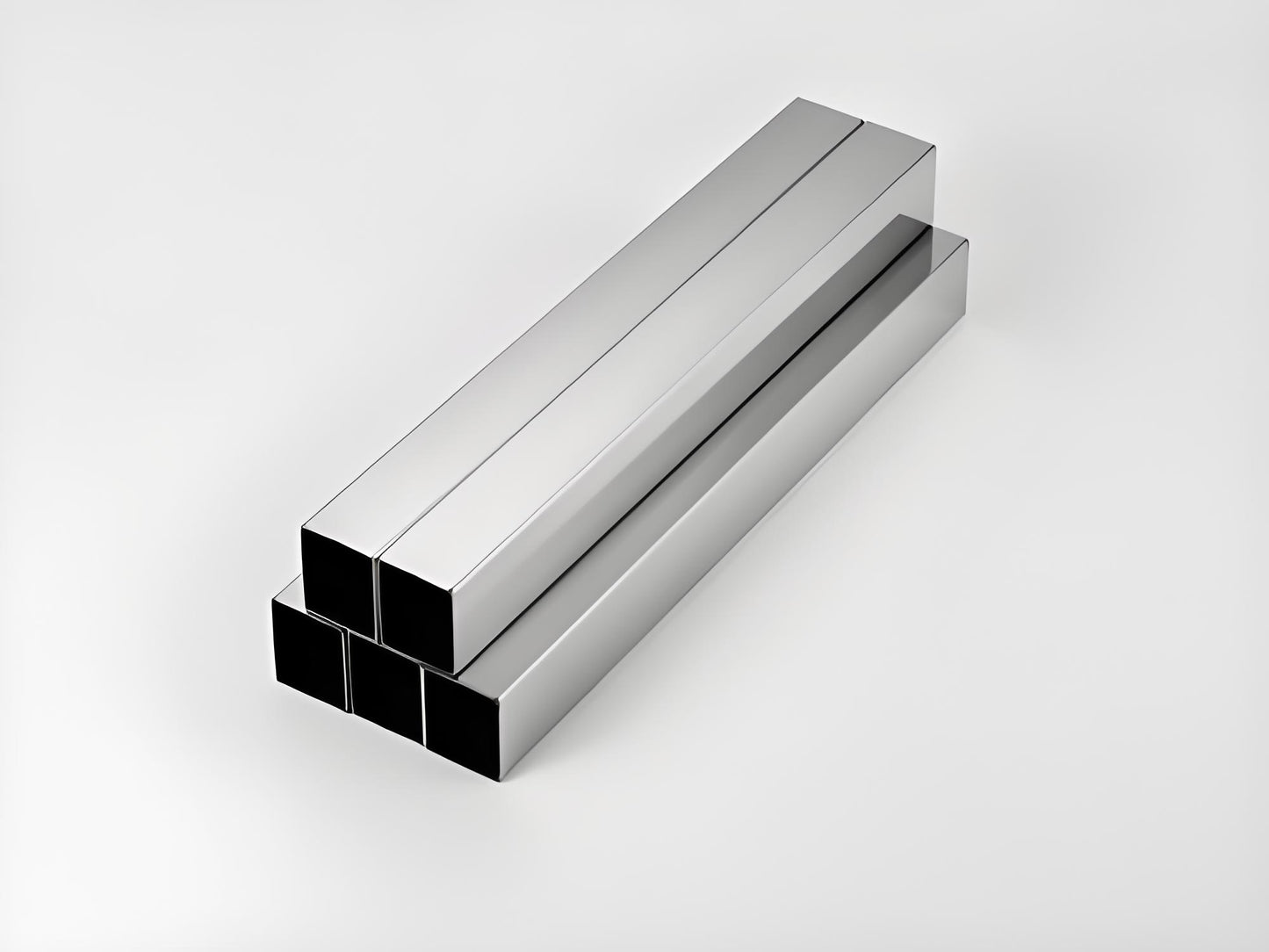

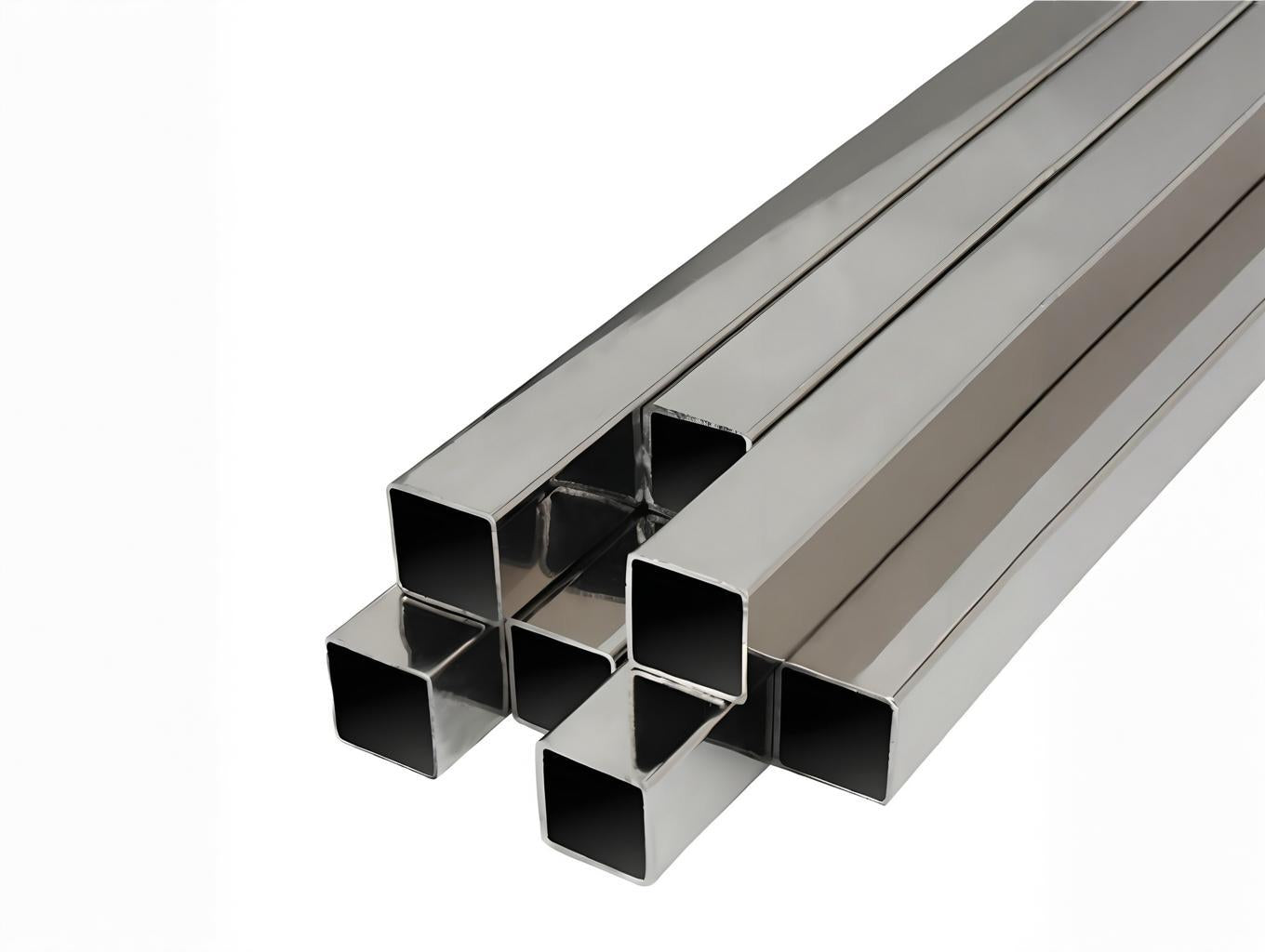

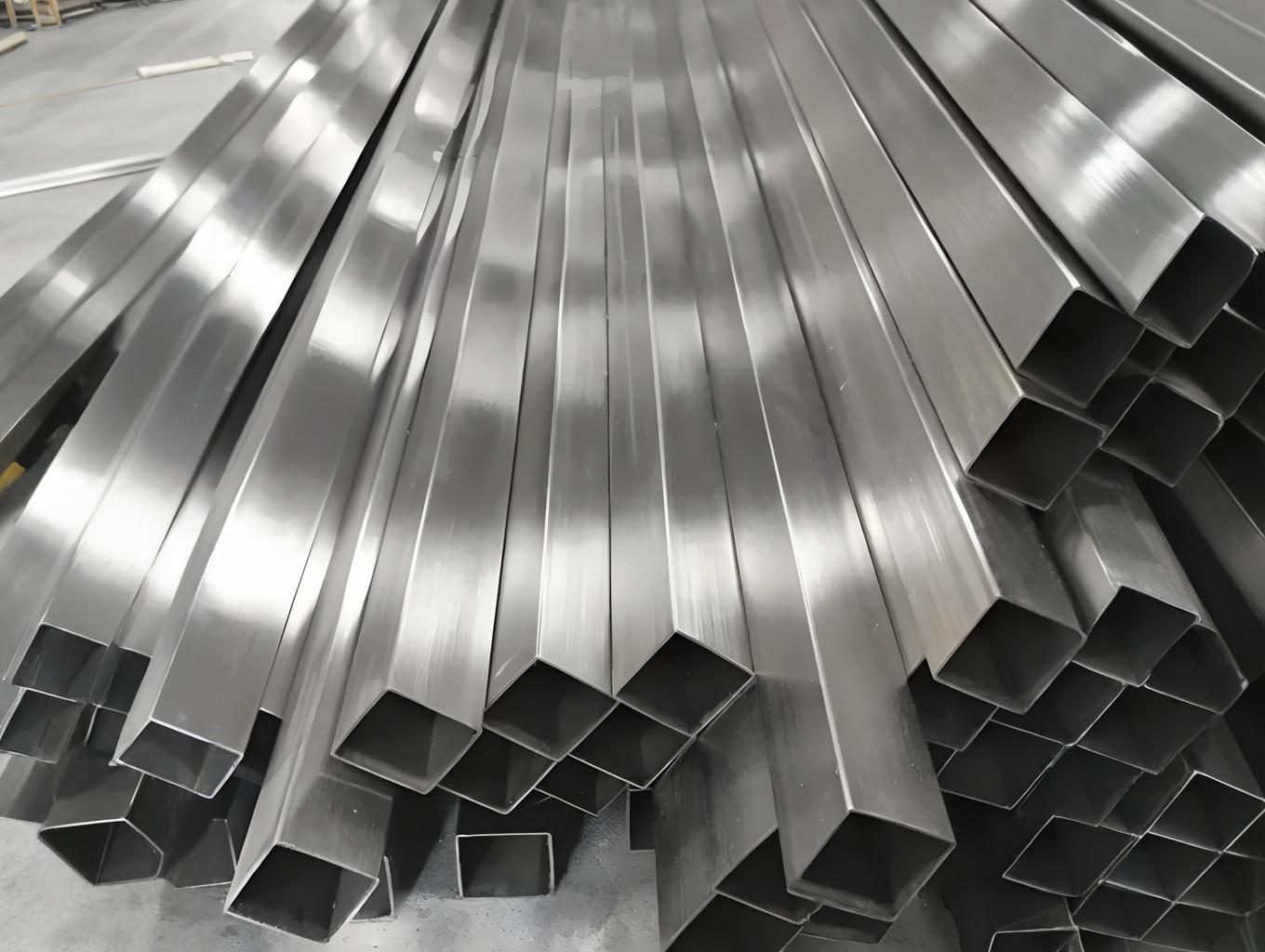

High-Performance Stainless Steel Square Tubing Engineered for demanding gas systems and structural applications, this ASTM-compliant hot-rolled square tube in 316L/304L grades delivers exceptional durability across temperature extremes (-20°C to 850°C).
Key Features: ◆ Material Superiority
300-series chromium-nickel alloy composition
Pitting Resistance Equivalent Number (PREN): 304L=19.5 | 316L=26.8
Hot-rolled finish with 120-grit surface (Ra ≤3.2μm)
Technical Specifications:
Wall Thickness: 1.5-12mm (±0.3% tolerance)
Standard Lengths: 6m (Custom cuts up to 12m available)
Pressure Rating: 8.6-34.5MPa (Varies by gauge)
MOQ: 1 Metric Ton
Processing Services: [✓] CNC Rotary Draw Bending (180° capability) [✓] Plasma/Laser Cutting (±0.5mm accuracy) [✓] Orbital TIG Welding (ASME Section IX compliant) [✓] Hydroforming for complex geometries
Logistics & Value:
Triple-layer seaworthy packaging:
VCI anti-corrosion paper wrap
2mm PE waterproof coating
Steel-reinforced wooden crate (60×40×40cm)
Bulk order discounts: 3-5% price reduction for 10+ ton shipments
Global maritime compliance: IMDG/ISO 16104 certified
